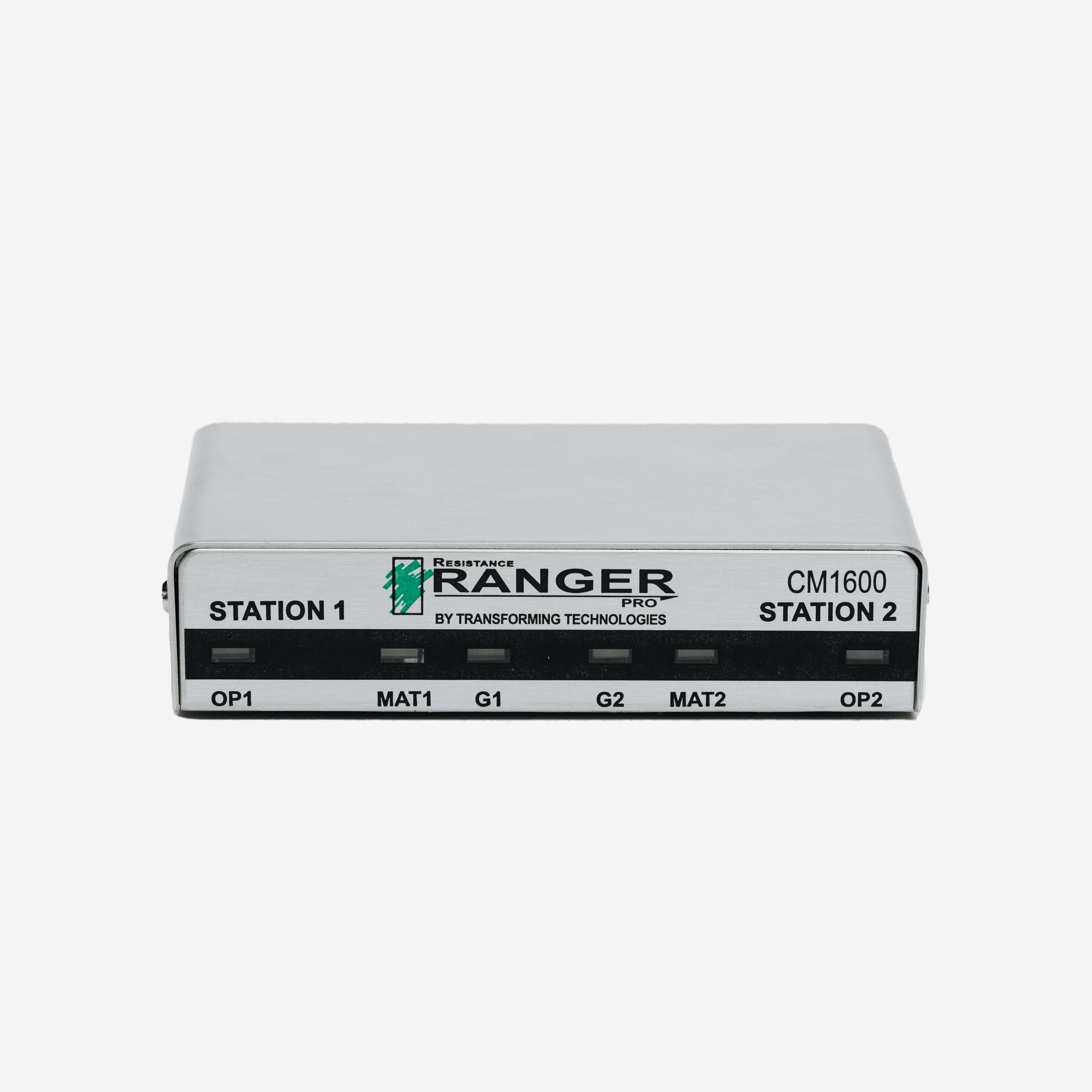

RangerPRO Dual Wire Constant Monitor – CM1600

Buy Now

Item #: CM1600

  • Monitors: Two wrist straps; Two work surfaces; Two auxiliary grounds
  • Accurate dual conductor resistance monitoring technology
  • Ultra-low voltage signal
  • Conductive ESD-safe case
  • Audible and visual alarms
  • Calibration certificate included
  • For use with Dual Wire Wrist Straps

62 in stock

    • 0 $
Quantity:

Description

Versatile, Dependable, and Accurate Resistance Based Constant Monitor System

The RangerPRO constant monitor is the premiere workstation grounding system available. A continuous pulse of an ultra-low voltage signal measures the electrical resistance of two wristbands, two work surfaces, and two auxiliary grounds simultaneously and alarms if there is a problem.

The RangerPRO is an extremely sensitive and reliable ground monitoring instrument. Audible and visible alarms are triggered if the operator’s resistance exceeds 35 megohm . Low resistance can also triggers an alarm event. Mat alarm limits are set at 100 meg ohm. The CM1600 packaged in a stainless steel case with two wrist strap jacks.

The RangerPRO saves time by eliminating the time-consuming testing of grounding products. The system uses special dual wire wristband sets that contain two independent elements which provide fail-safe protection. The series includes both fabric and metal wristbands paired with cords in either 5, 10, or 20 feet lengths.

Meets or exceeds requirements of ANSI ESD-S20.20 and ESDA Standard 1.1-2006

Operator Presence Check

The RangerPRO can be outfitted with the Cyclops Remote Sensor that detects the presence of an operator and alarms if a wrist strap is not connected to prevent ungrounded handling of ESD susceptible items.  Model:  CM-REMOTE-IR.

Alarm Signals

The RangerPRO works with light towers, sirens, and other devices to enhance the signal of a failure. Pair the unit with the CM-RELAY to integrate with a signal (check with the manufacturer of your signal for compatibility.)

Calibration

The RangerPRO is factory calibrated and does not require annual re-calibration.  It is recommended to verify calibration with the CM2015PV periodic verification meter at least once a year.  Download the RangerTWO calibration statement for your compliance program.

Additional information

Weight 0.5 lbs
Dimensions 4 x 1 x 3 in
Type

Dual Wire Resistance

Capabilties

Two Wrist Straps, Two Worksurface, Two Aux Grounds

Voltage

0.2v (200mV)

Power Supply

7-15 VDC, 100mA

Alarm Limits

Wrist Strap: 1.8 megohm (Low Resistance) 35 meg ohm (High Resistance)
Worksurface: 100 meg ohm.

We have resellers for this product but we have not posted website referal links at this time. You can contact us phone or by adding this item to your quote using the "Add to Quote" Button above. We will get you the information you need. Thanks!
