The METRISOÂ® 3000Â ESD-Audit-Kit includes the relevant test instruments and equipment needed to perform ESD audits according to ANSI ESD.2020 Â and IEC 61340-5-1 and for qualification / verification of ESD control elements.Â The kit is built around the METRISOÂ® 3000 digital high resistance meter. Â It can take resistance measurements of 1K Ohm Â – 10T Ohm.
Evaluate packaging materials
Measure flooring, work surfaces and furniture resistance
Measure electrostatic fields
Measure temperature and relative humidity
Analyze ionizers performance
Included in the kit
Metriso3000 – Â High resistance testing meter. Learn More
SRM110 – Pocket surface resistance meter. Â Learn More
EFM51 Â – Static field meter with charge plate. Learn More.
TF530 – Handheld temperature and humidity sensor. Learn More.
Two 5lb disc probes. Â Learn More.
8 socket grounding box
15′ floor mat testing cable
Metal plate with 4mm snap

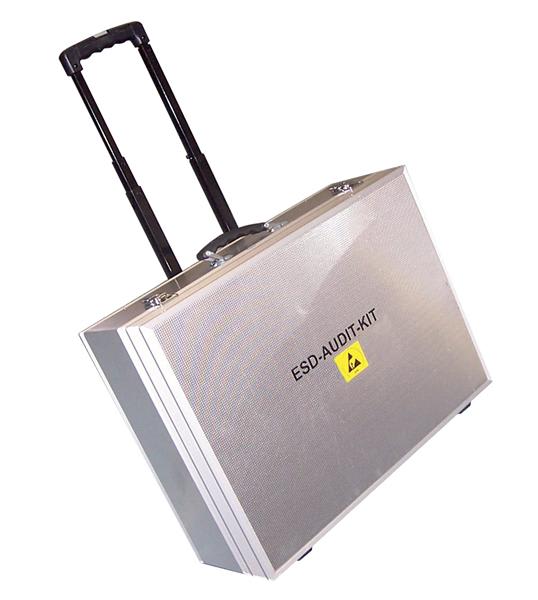

Rugged aluminum case with conductive foam inserts and ESD symbol
Upper compartment with a flap
Removable, telescopic handle with castors
Dimensions: 575x490x250 mm
