Ptec™ IN6430 Ionizing Blow Off Gun

Buy Now

Item #: IN6430

  • Point-And-Shoot Precision Ionization
  • Fast Static Decay Times with Excellent Balance
  • Output Nozzle Tips Available to Change Airflow
  • Single Integrated Air/Power Cable with Strain Relief That Protects Cables.
  • Ergonomic Handle Design
  • Filter Available to Ensure Clean Air
    • 0 $


Best-In-Class Design creates precision ionizing performance

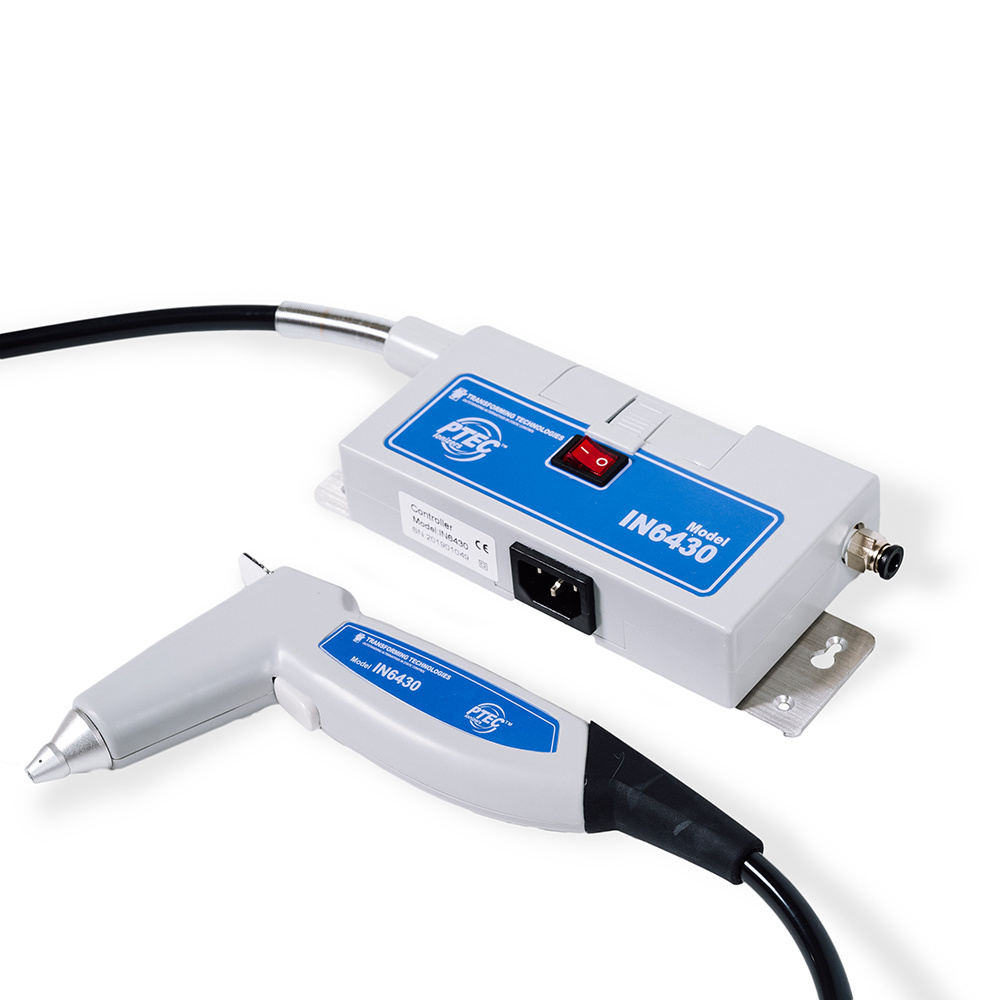

Transforming Technologies’ IN6430 ionizing air gun is a superior static eliminating device that integrates best-in-class AC performance and ergonomic design features into a superior and affordable package. The IN6430 works twofold as a forceful blow off gun that easily removes particulate from surfaces and as a neutralizer to remove the charges responsible for the attraction of contaminants to product surfaces.

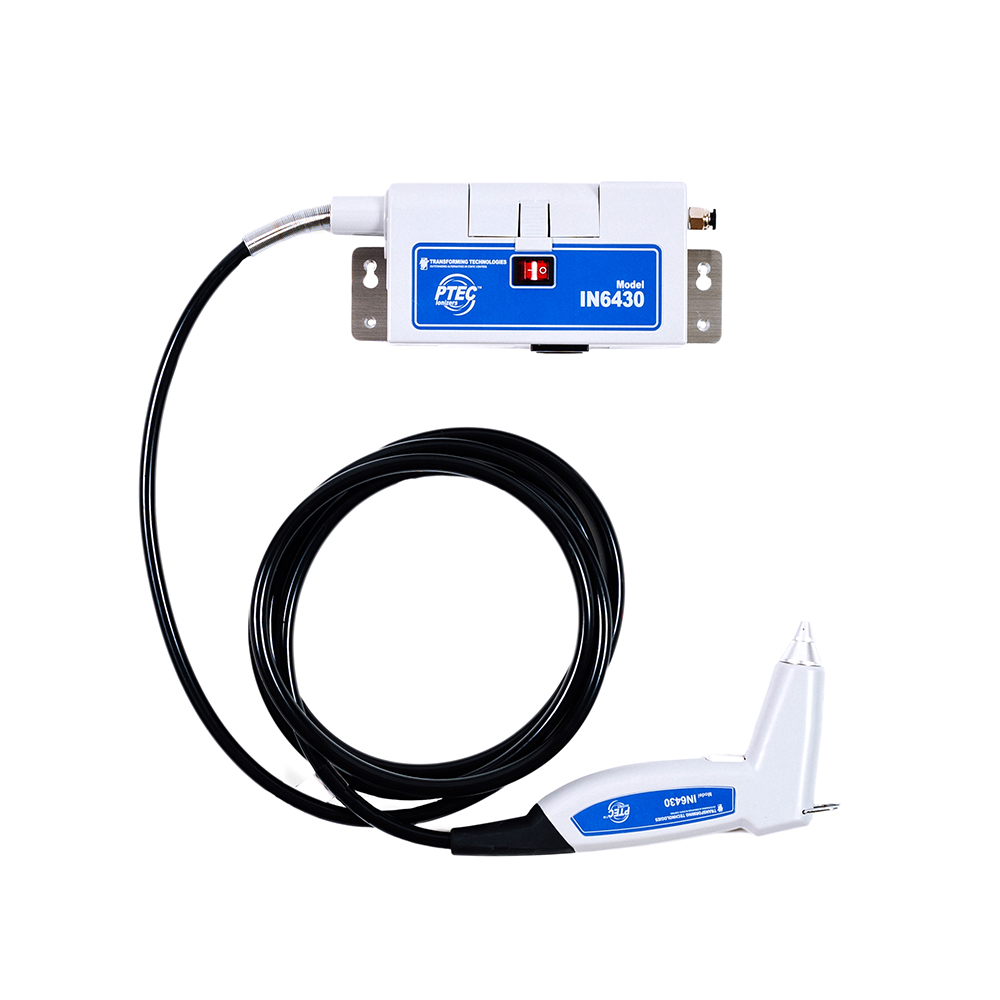

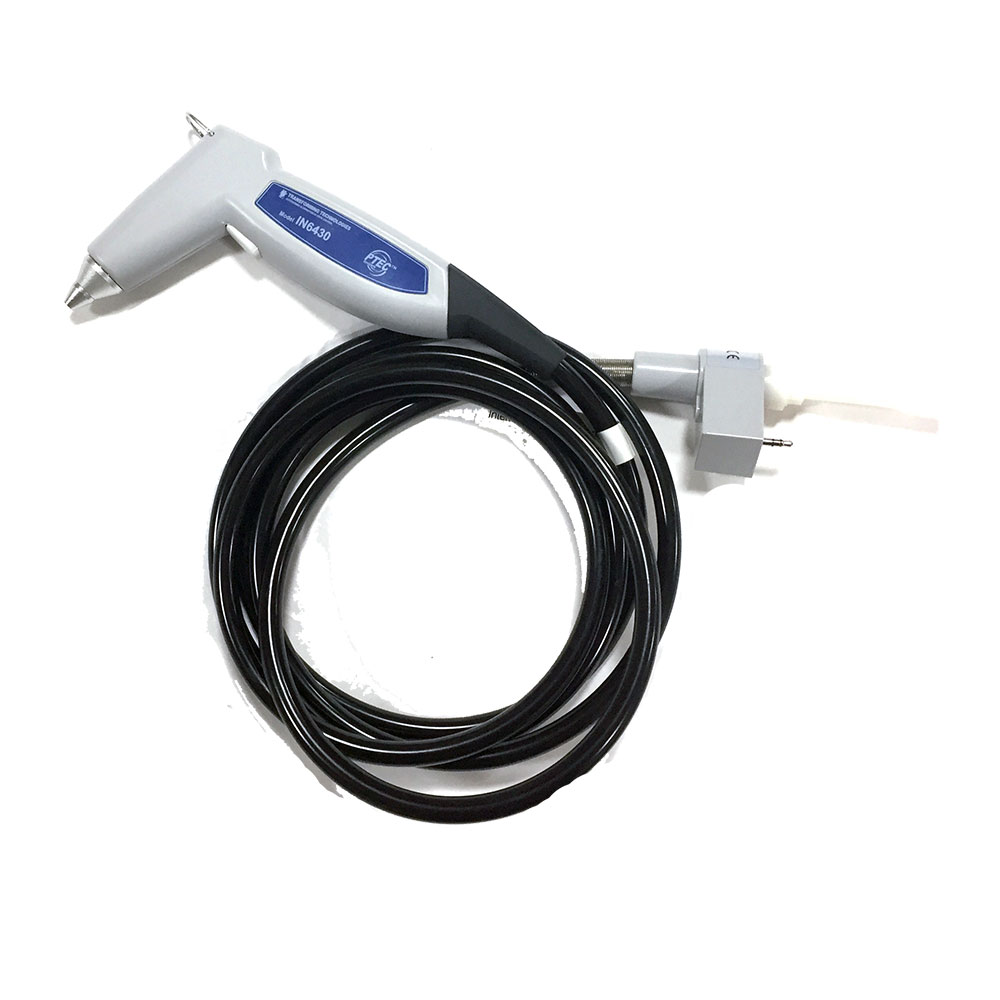

Typical AC ionizing guns require stiff and bulky high voltage (HV) cables to connect the gun to the power supply. The IN6430 integrates the air and HV cables into one, durable, easily to flex cable.

Ptec™ Stability

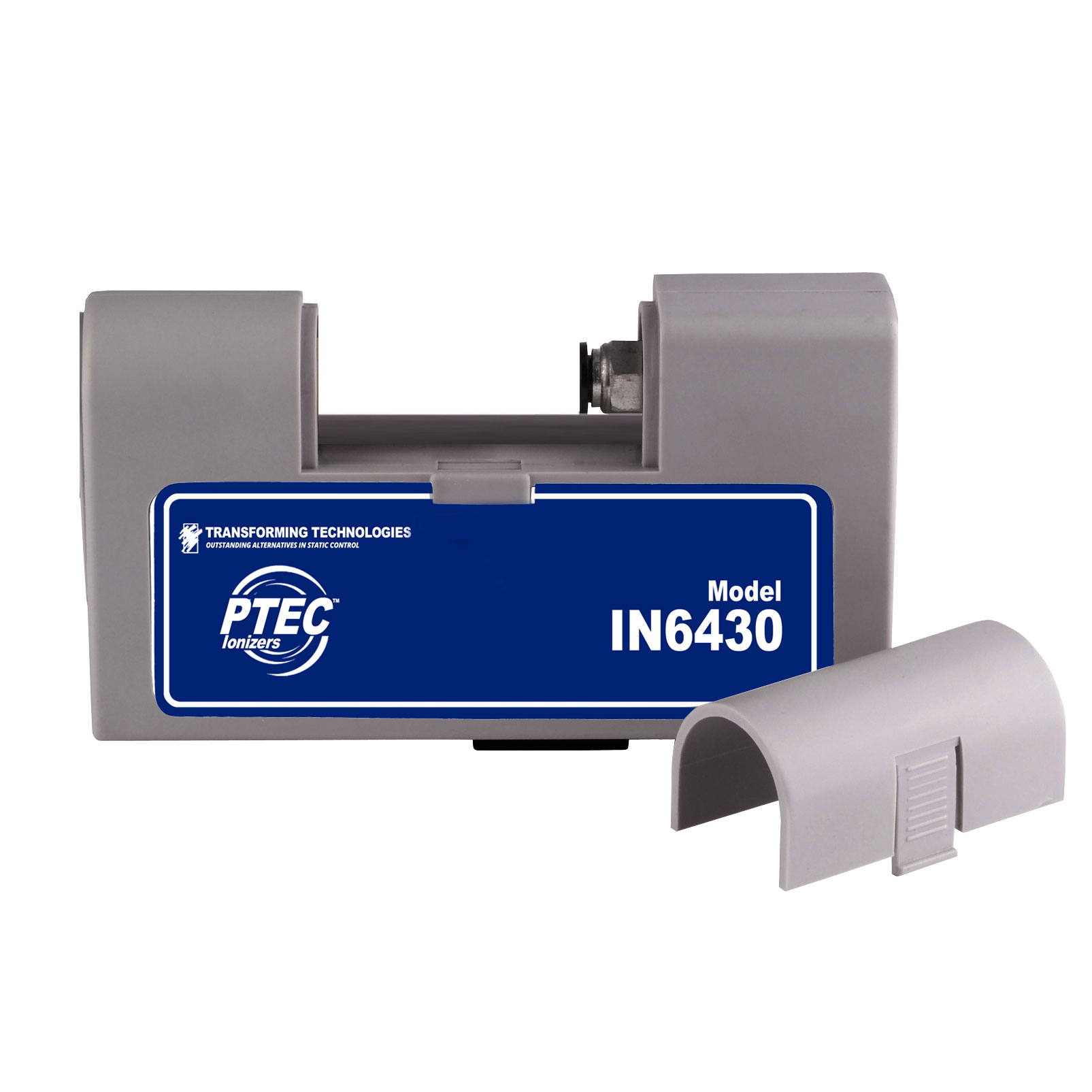

The IN6430 uses Ptec™, a specialized piezoceramic technology, to create a high-frequency AC ionizing output with exceptional balance and decay performance. We eliminate high voltage cables by locating the power supply in the ionizing gun handle. Our OSHA compliant emitter nozzle protects both the operator and ionizer. Emitter contamination and wear are virtually non-existent with AC ionizing guns.

Performance:IN6430 Ionizing Performance
The In6430 is rated to reduce 1000volts to 100volts in 2 seconds at a distance of 12in from charged surface.  The closer to the charged surface, and the higher the PSI, the faster the decay times.  Different configurations of air pressure and distance can create the best static eliminating performance for your application.

FL0030 Hollow Fiber Micro Filter
The FL0030 micro filter features a hollow fiber membrane that provides excellent filtration and has a long service life. The compact design is easy to install and comes with quick release connections for fast replacement. All materials used are compatible for the most stringent applications.  Learn more about the FL0030 here.

Output Nozzle Tips
Change the airflow from the IN6430 gun to handle unique and difficult point-of-use ionization applications with interchangeable nozzle tips. Wide angle, long range, bendable, luer lock or manifold tips may be substituted depending on the application. Learn more about the Output Nozzle Tips here.

The IN6430 is designed to neutralize electrostatic charges in personal bench top environments, sensitive materials assembly, SMT, Electronics Assembly, Automotive packaging, clean room and laboratory environments.

Additional information

Weight 4 lbs
Dimensions 12 x 10 x 10 in

We have resellers for this product but we have not posted website referal links at this time. You can contact us phone or by adding this item to your quote using the "Add to Quote" Button above. We will get you the information you need. Thanks!
